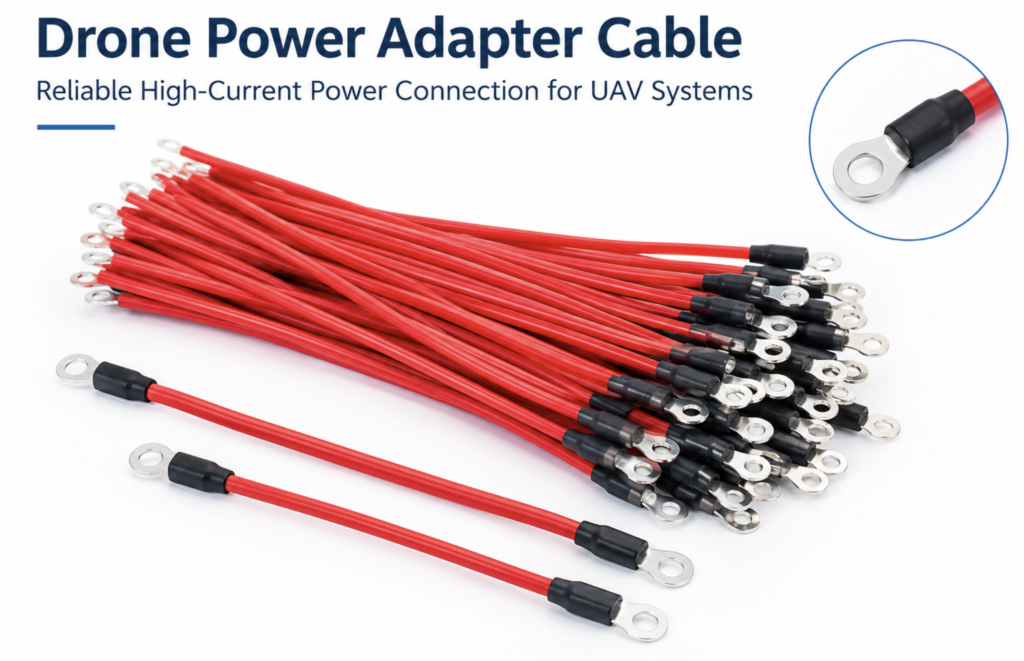

In modern UAV and drone applications, a reliable power connection is just as important as the battery and propulsion system itself. A high-quality drone power adapter cable provides a secure connection between the battery, power distribution system, electronic speed controller, and other high-power components.
Designed with a two-core power cable and high-current connectors, this type of UAV power cable is suitable for a wide range of drone, RC aircraft, battery pack, and industrial power applications.
What Is a Drone Power Adapter Cable?
A drone power adapter cable is a specialized power connection cable used to transfer DC electrical power between different components of an unmanned aerial vehicle.
Unlike standard low-current signal cables, drone power cables are designed for power transmission and typically use thicker conductors and high-current connectors. The cable generally consists of:
- Red positive power wire
- Black negative power wire
- High-current DC connectors
- Insulated cable jacket
- Connector housings with polarity protection
The two-wire configuration makes the cable suitable for direct DC power connections where reliable positive and negative polarity is required.
Key Features of Our UAV Power Cable
1. High-Current Power Connection
UAV propulsion systems can require substantial electrical power. The use of a suitable high-current connector and appropriately sized power cable helps provide a stable electrical connection between the battery and the drone power system.
The actual current capacity depends on the selected wire gauge, connector model, cable length, temperature, and operating conditions. Therefore, the cable can be configured according to the requirements of different UAV platforms.
2. Polarized Connector Design
The connectors used on drone battery cables are typically designed to prevent incorrect polarity connections.
The clearly differentiated positive and negative conductors, combined with the polarized connector structure, help reduce the risk of incorrect installation during battery connection and maintenance.
3. Durable Cable Construction
The cable is constructed with insulated power conductors and protective cable materials designed for demanding electrical applications.
For UAV manufacturers and integrators, cable durability is particularly important because drones may experience:
- Vibration
- Repeated battery connection and disconnection
- Mechanical movement
- Outdoor operating conditions
- Temperature variations
A properly selected cable assembly can improve the reliability of the overall power connection.
4. Compact Design for UAV Applications
Space and weight are important considerations in drone design.
A compact drone battery cable can provide the required electrical connection without taking up unnecessary space inside the UAV. This makes it suitable for applications where the battery, power distribution board, ESC, and other components need to be installed within a limited area.
Drone Battery Cable for Different UAV Applications
A reliable battery connection is essential for both small UAVs and larger industrial drone systems.
Our drone battery power cable can be used in various applications, including:
Consumer and Commercial Drones
Power adapter cables can be used for battery connections and power system integration in commercial and recreational drones.
Industrial UAVs
Industrial drones often require more robust power systems for applications such as inspection, mapping, surveying, agriculture, and infrastructure monitoring.
Agricultural Drones
Agricultural UAVs require reliable power connections to support motors, pumps, controllers, and other electrical components. Properly selected power cables can help maintain stable power transmission during operation.
FPV and RC Aircraft
High-current battery cables are also widely used in FPV drones, RC aircraft, multirotors, and other electrically powered models.
Battery Packs and Power Distribution Systems
The cable can also be used as an adapter between battery packs and power distribution systems, depending on the connector configuration and electrical requirements.
Why Connector Selection Matters for Drone Power Cables
The connector is one of the most important components of a UAV power cable.
A suitable connector should provide:
- Reliable electrical contact
- Low contact resistance
- Secure mechanical connection
- Correct polarity
- Sufficient current capacity
- Good resistance to repeated plugging and unplugging
Different UAV platforms have different voltage and current requirements. Therefore, connector selection should be based on the complete electrical system rather than connector appearance alone.
When ordering customized drone power cables, customers should provide the connector type, wire gauge, cable length, operating voltage, and required current whenever possible.
Customized Drone Power Cable Solutions
Different UAV manufacturers may use different battery and power-system configurations. For this reason, customized cable assemblies can be more practical than standard off-the-shelf cables.
Depending on the application, the cable can be customized in areas such as:
Cable Length
Different UAV structures require different cable lengths to achieve a clean and efficient installation.
Wire Gauge
The conductor size can be selected according to the required current, cable length, and operating environment.
Connector Type
Different battery systems and power distribution systems may require different connector configurations.
Connector Orientation
Connector orientation can be customized to simplify installation and improve cable routing.
Cable Jacket
Different insulation and jacket materials can be selected according to temperature, flexibility, and environmental requirements.
Cable Assembly
OEM and ODM cable assemblies can be developed according to customer drawings, samples, or technical specifications.
How to Choose the Right Drone Power Cable?
Before selecting a drone power cable, several factors should be considered.
1. Determine the Operating Voltage
The cable and connector system must be suitable for the operating voltage of the UAV battery and power system.
2. Calculate the Required Current
The expected continuous and peak current should be considered when selecting the conductor and connector.
3. Select the Correct Wire Gauge
Higher-current applications generally require larger conductors. Cable length should also be considered because longer cables can result in greater voltage drop.
4. Select a Compatible Connector
The connector must match the battery, ESC, power distribution board, or other equipment.
5. Consider the Operating Environment
For drones operating outdoors or in demanding environments, cable flexibility, temperature resistance, vibration resistance, and mechanical protection should be considered.
Technical Specifications
The following specifications can be used as a starting point for this type of drone power adapter cable:
| Item | Specification |
| Product Name | Drone Power Adapter Cable |
| Application | UAV / Drone Power System |
| Cable Type | 2-Core DC Power Cable |
| Conductors | Positive (+) / Negative (-) |
| Wire Color | Red / Black |
| Connector | High-Current DC Connector |
| Cable Gauge | Customizable |
| Cable Length | Customizable |
| Rated Voltage | According to application |
| Rated Current | According to wire and connector configuration |
| Cable Material | According to customer requirements |
| Connector Material | Engineering Plastic + Metal Terminals |
| Polarity Protection | Yes |
| Application | Drone, UAV, RC Aircraft, Battery Pack |
| OEM/ODM | Available |
Note: Final electrical specifications should be confirmed according to the actual connector model, conductor size, cable length, and application requirements.
Why Choose a Professional Drone Cable Manufacturer?
For UAV manufacturers and system integrators, a power cable is not simply a piece of wire. The cable, connector, conductor size, assembly process, and electrical specifications all affect the reliability of the final power system.
A professional cable manufacturer can provide:
- Customized cable lengths
- Multiple connector options
- Different wire gauges
- OEM cable assemblies
- Prototype development
- Sample production
- Bulk manufacturing
- Cable assembly according to customer drawings
- Customized packaging and labeling
This makes it easier for UAV manufacturers to integrate the cable directly into their existing drone power systems.
Conclusion
A reliable drone power adapter cable plays an important role in UAV battery and power-system integration. With a two-core positive and negative power configuration, high-current connectors, and customizable cable specifications, this type of cable can be used for drones, UAVs, FPV aircraft, RC models, battery packs, and other DC power applications.
For OEM and ODM projects, the cable length, wire gauge, connector type, voltage rating, and current capacity can be selected according to the specific requirements of the UAV power system.
If you are looking for a custom drone power cable, UAV battery cable, or high-current drone adapter cable, providing your connector type, cable length, wire gauge, and electrical requirements is the best starting point for developing the right cable assembly.
